W2B Pacific Highway Upgrade - Section 5 Bridges
Maclean, New South Wales

Project Overview

The Pacific Highway Upgrade between Woolgoolga to Ballina (W2B) in northern NSW involved the duplication of approximately 155 kilometres of the national highway to a four-lane divided road.

JF Hull Holdings (as part of the BHA Joint Venture) was awarded a Construct Only Contract by Transport for NSW to construct 21 bridges between Maclean and Iluka (Portion B Section 5).

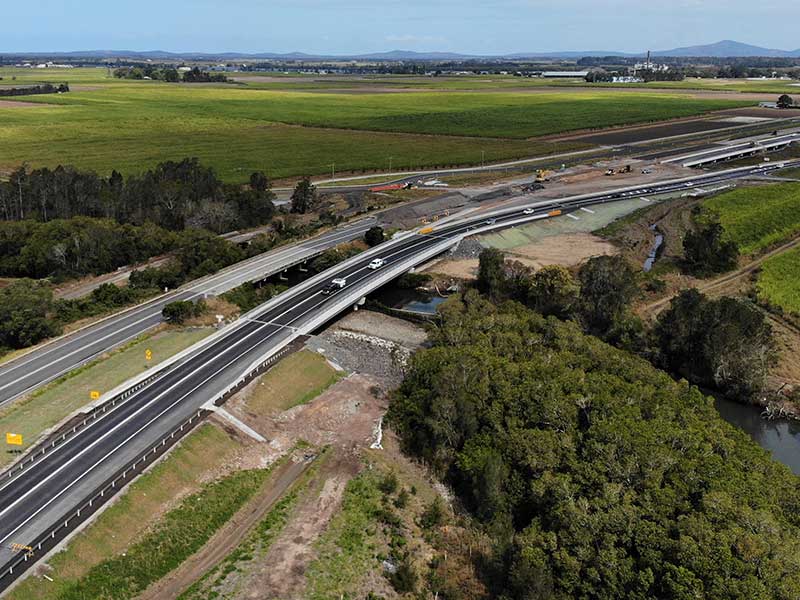

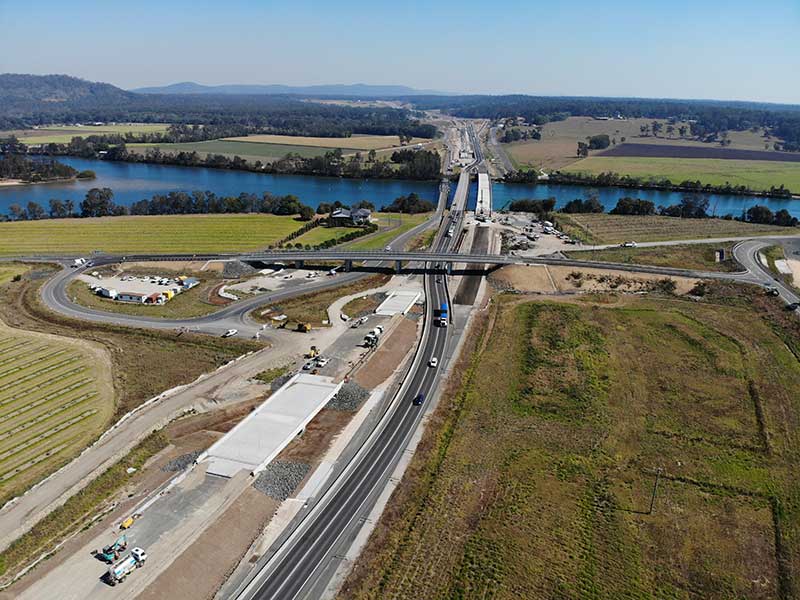

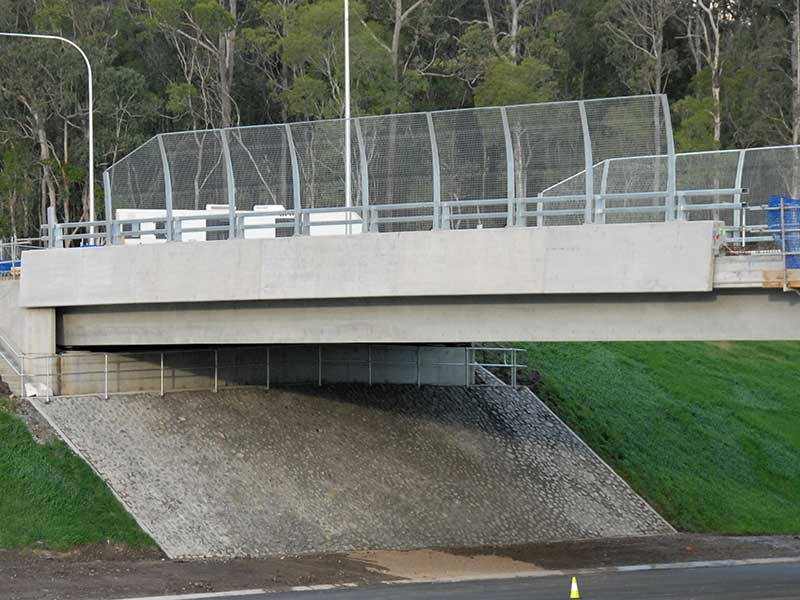

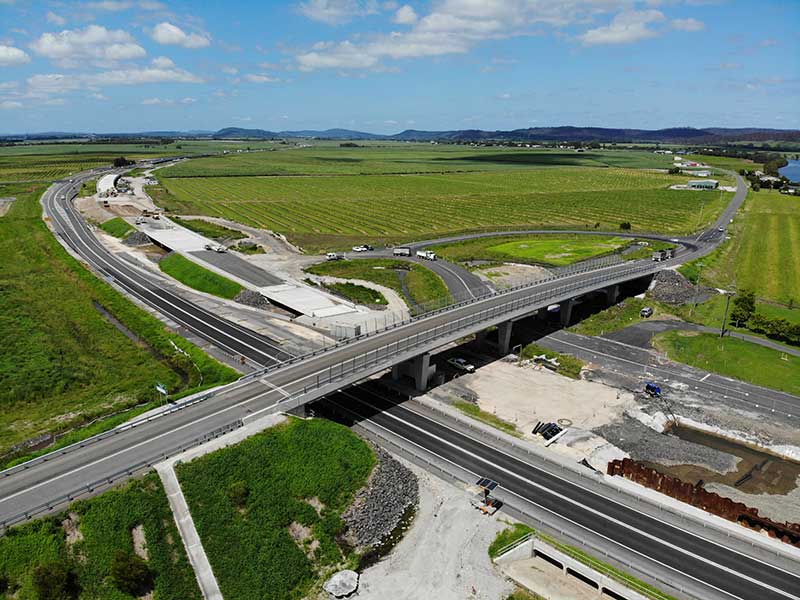

The bridges were positioned over 14 Floodplain Openings, with 3 Highway Overpasses for local roads, 1 Fauna Crossing and 1 bridge over an existing waterway. The combined length of all constructed bridges totalled 2400 linear meters.

Principal: Transport for NSW
Delivery Partner: Pacific Complete
Principal’s Contact: Matt Ross
Project Director: Clayton Smith
Project Manager: Dennis Vidulin
Project Foreman: Dave Prouten
Date Commenced: July 2017
Date Completed: March 2020
Contract Value: $69,048,057
Contract Value at Completion: $87,754,433

Scope of Works:

The access to the bridge sites and associated working platforms were provided by the client. Bridge piling was excluded from our scope and precast elements were supplied by the client.

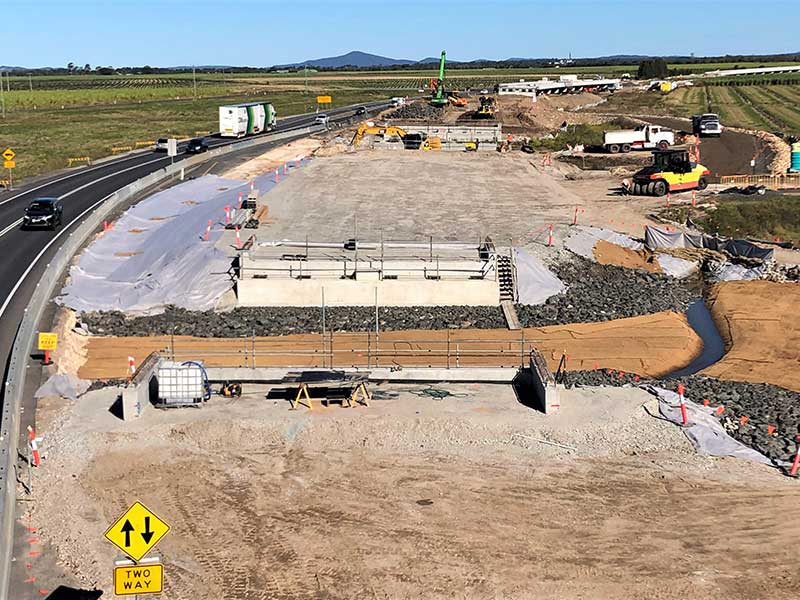

JF Hull installed a total of 99 precast abutment & headstocks beams, each weighing in excess of 50t.

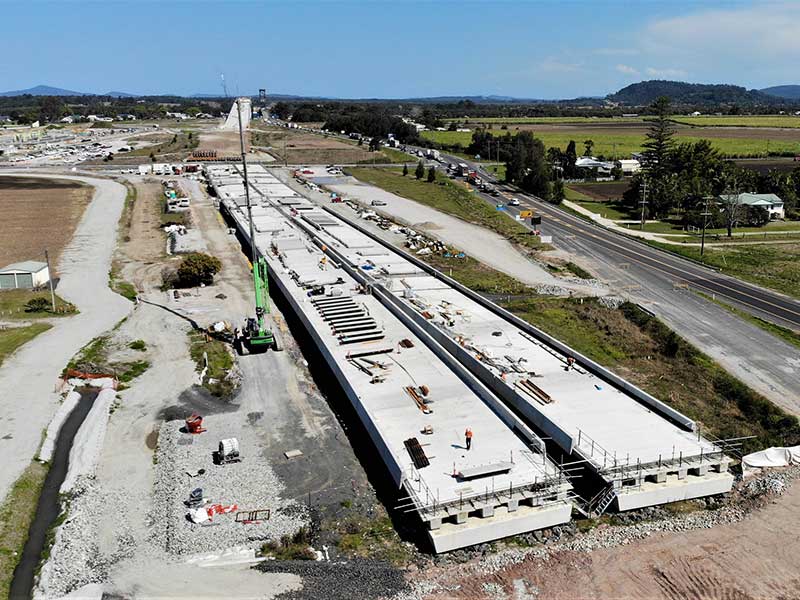

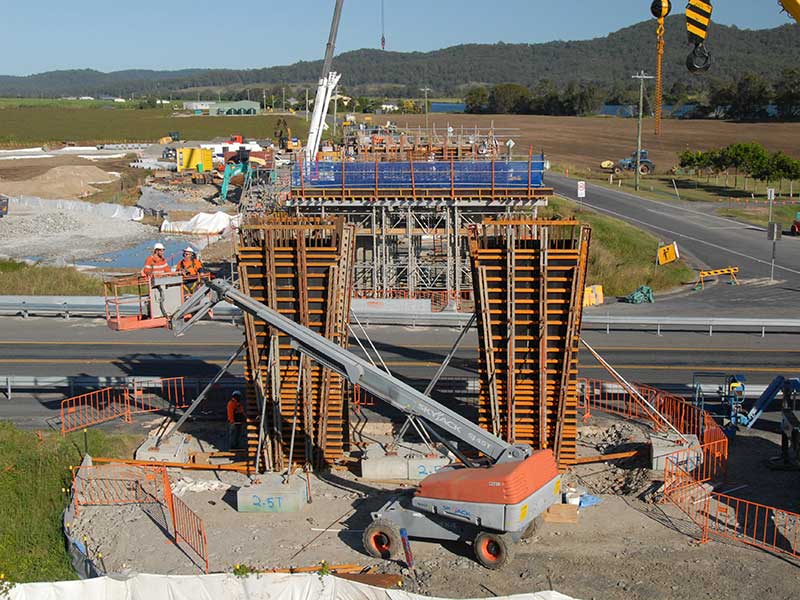

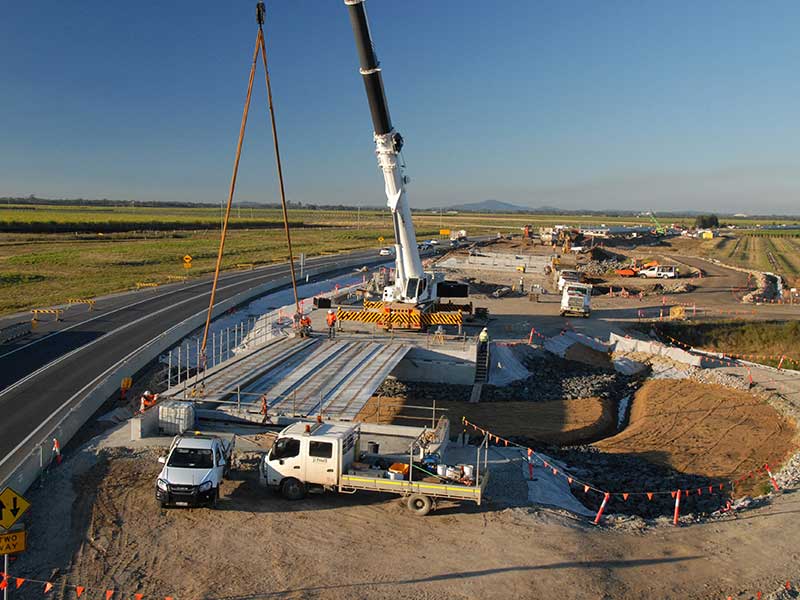

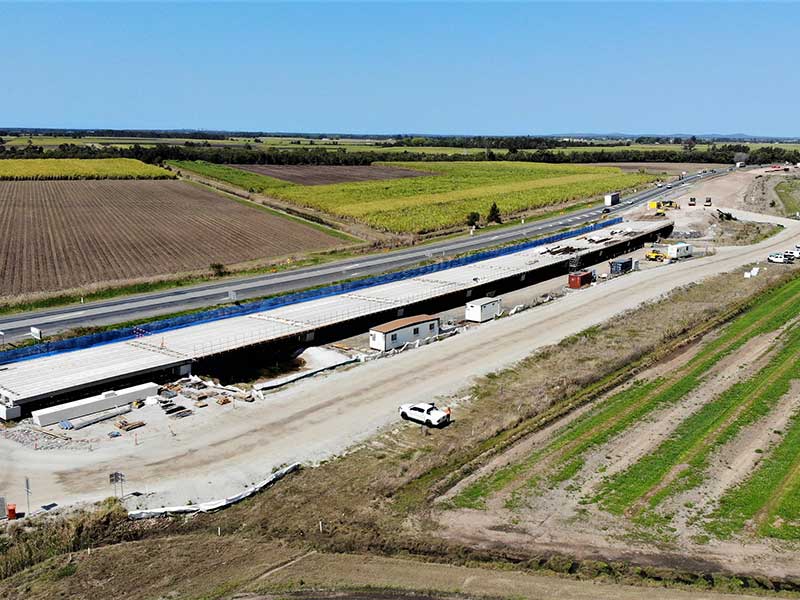

Approximately 15,000m3 of concrete was poured for remaining in-situ substructures including abutments, headstocks and piers. Pretensioned precast concrete deck units were utilised and comprised a total of 69 Super T girders and 753 winged deck planks.

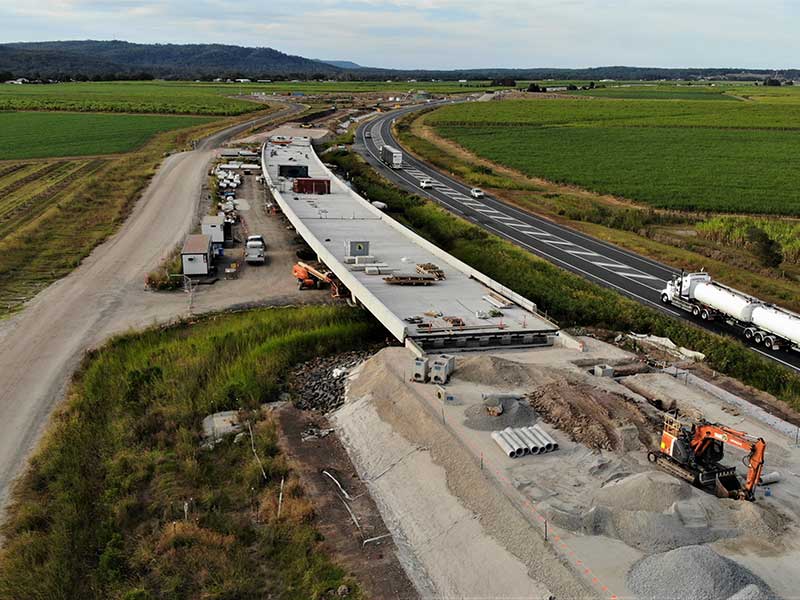

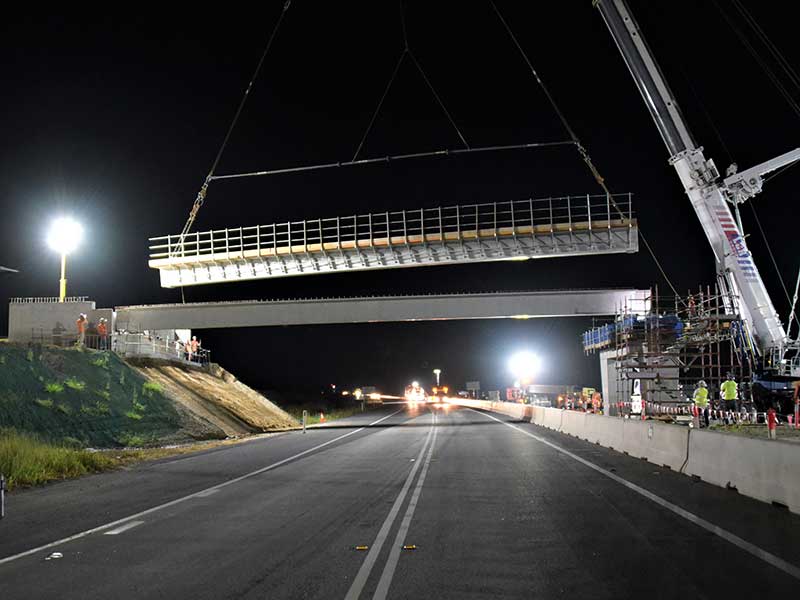

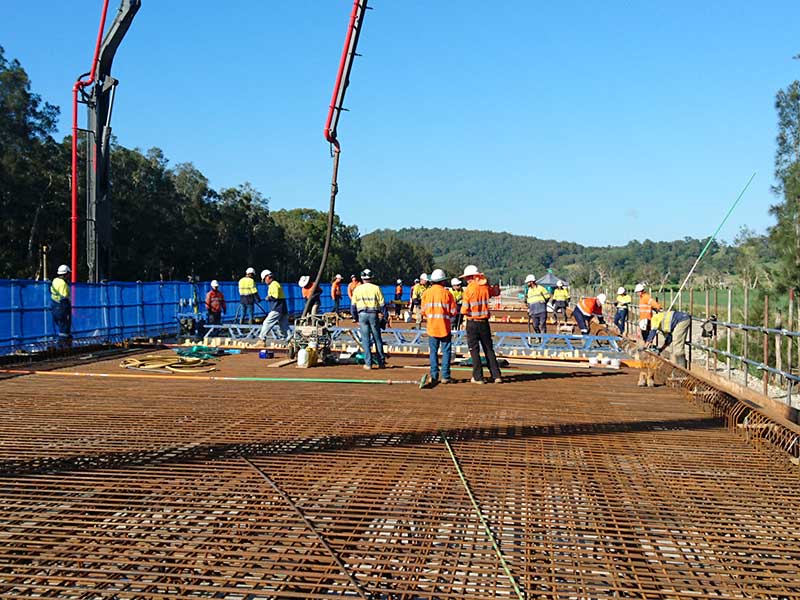

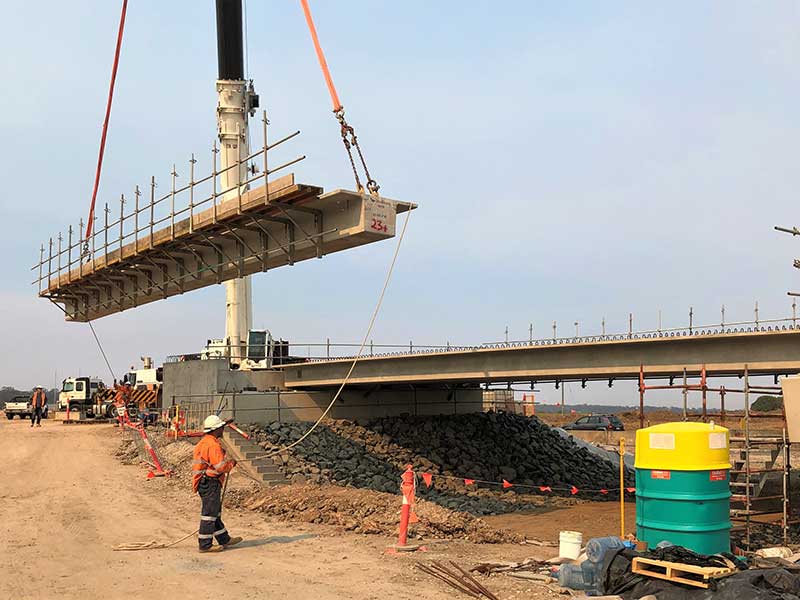

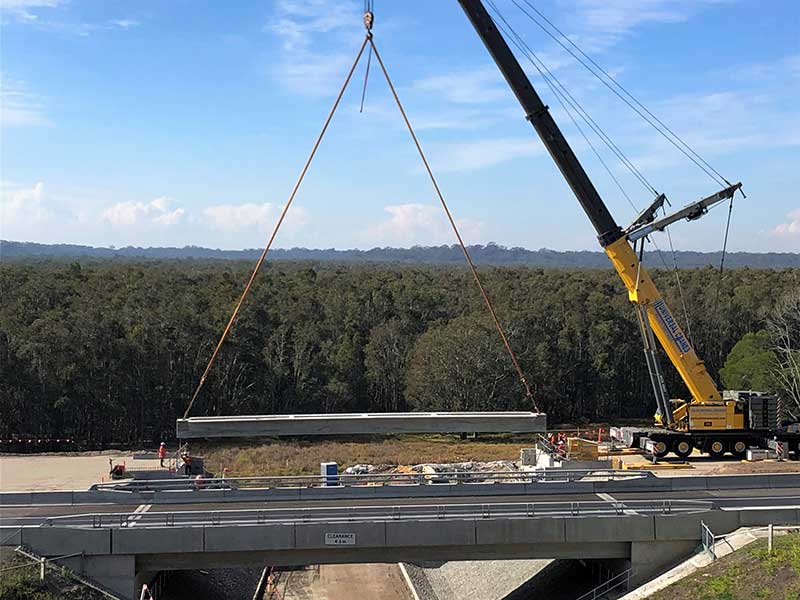

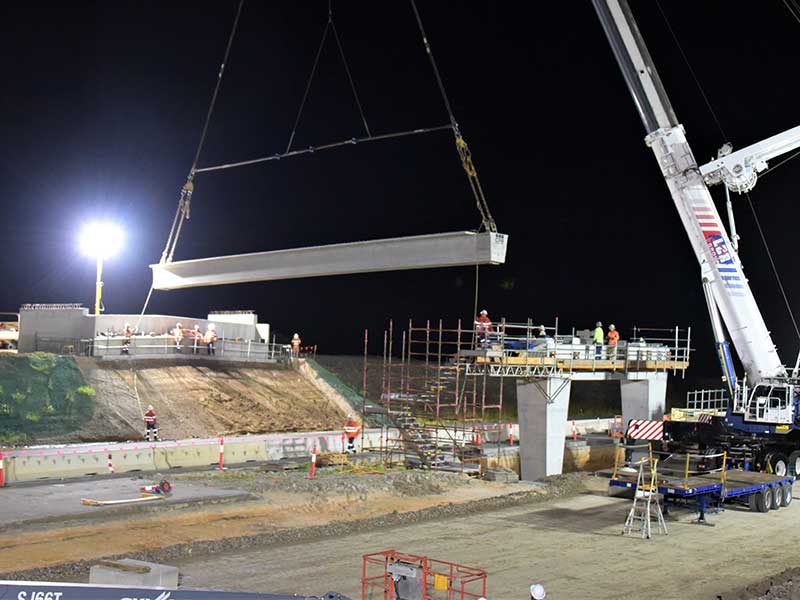

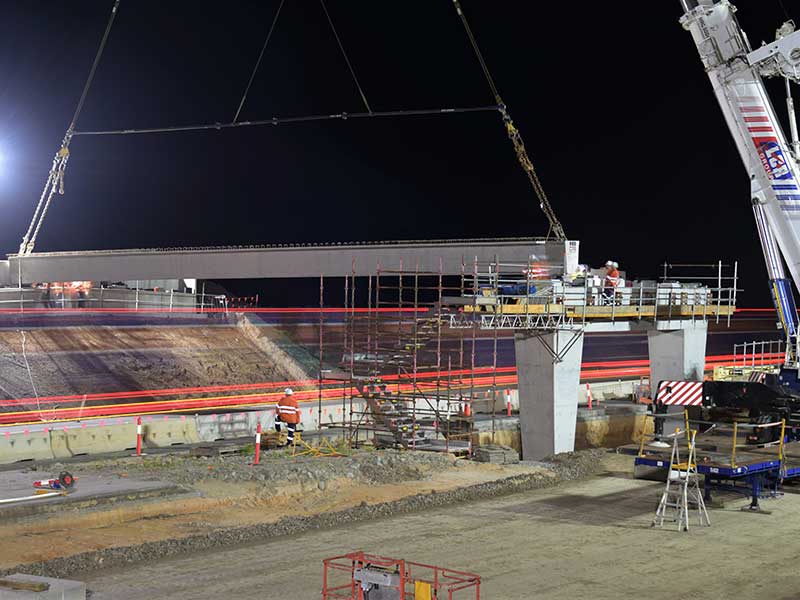

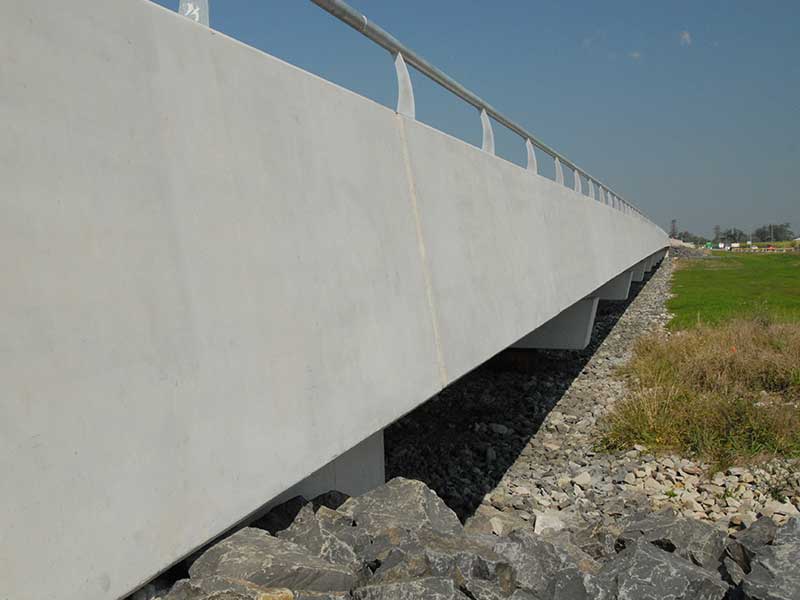

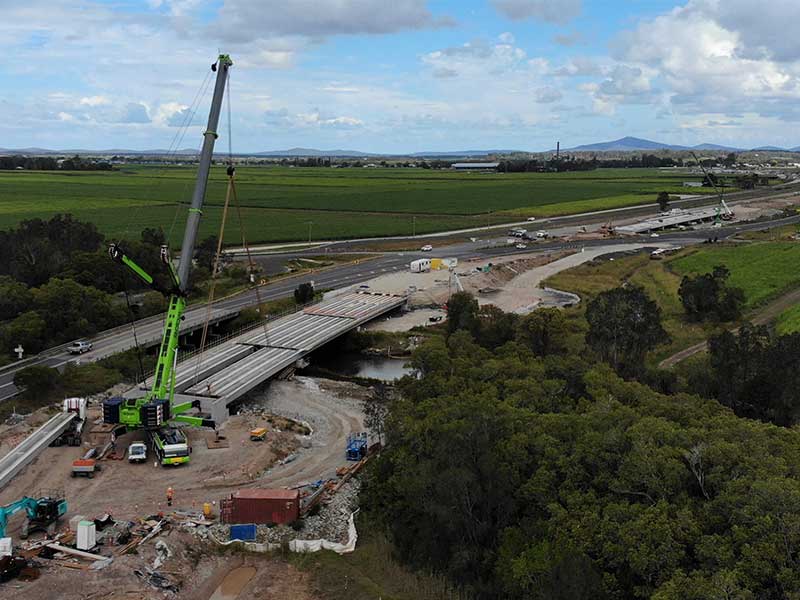

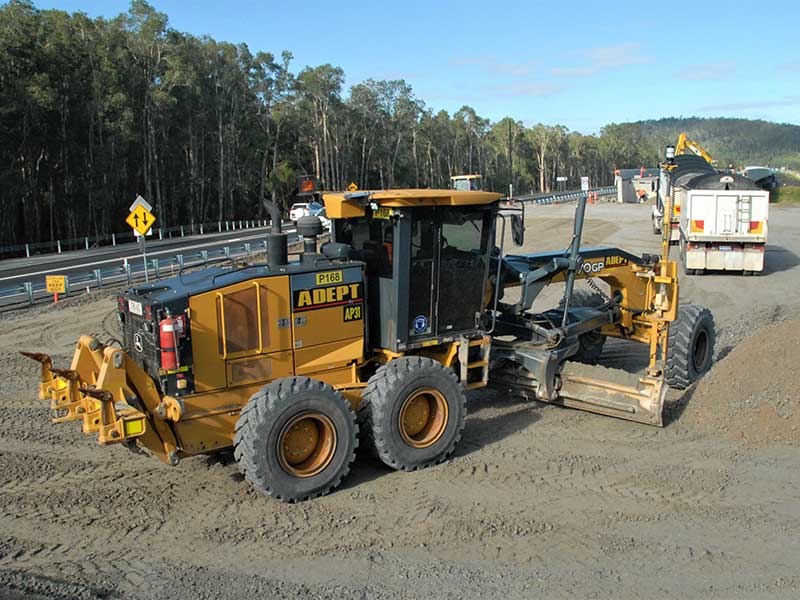

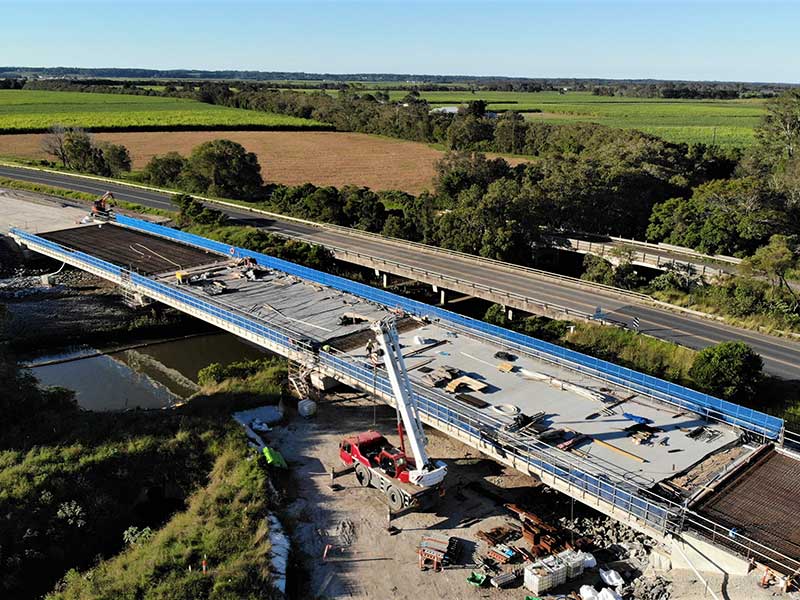

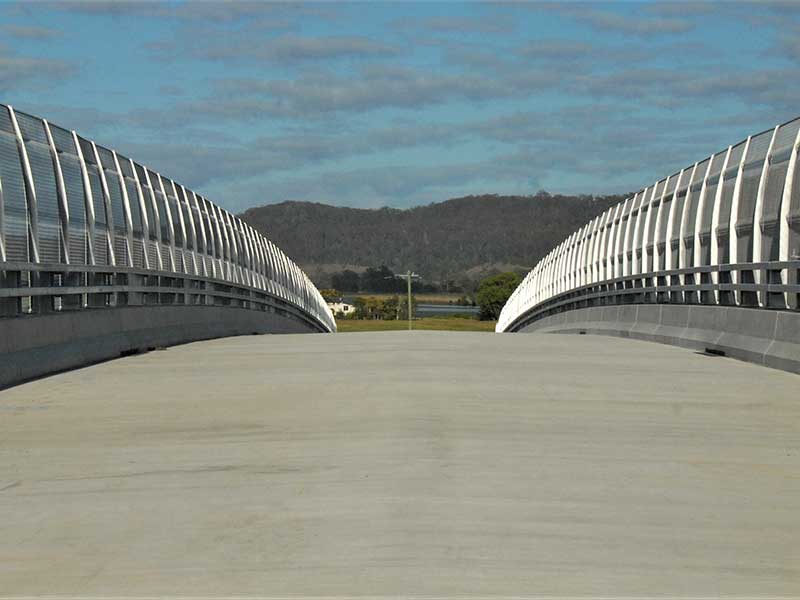

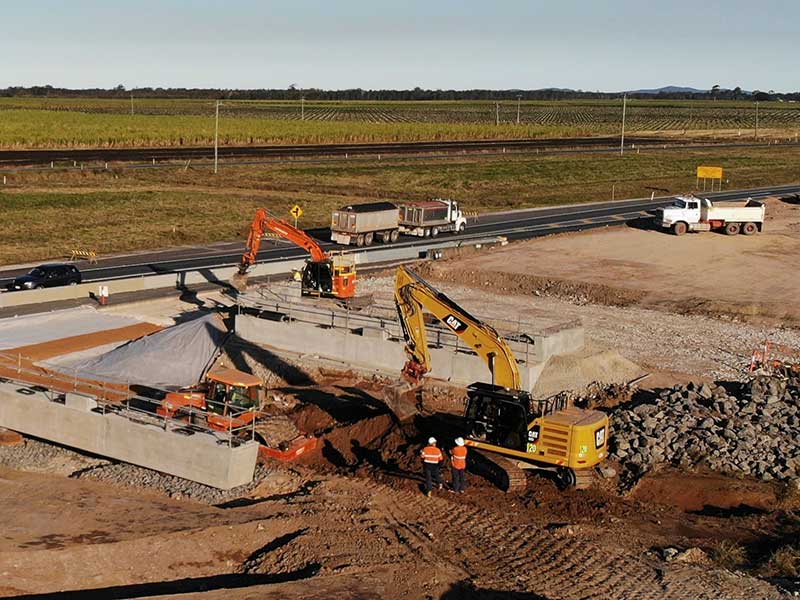

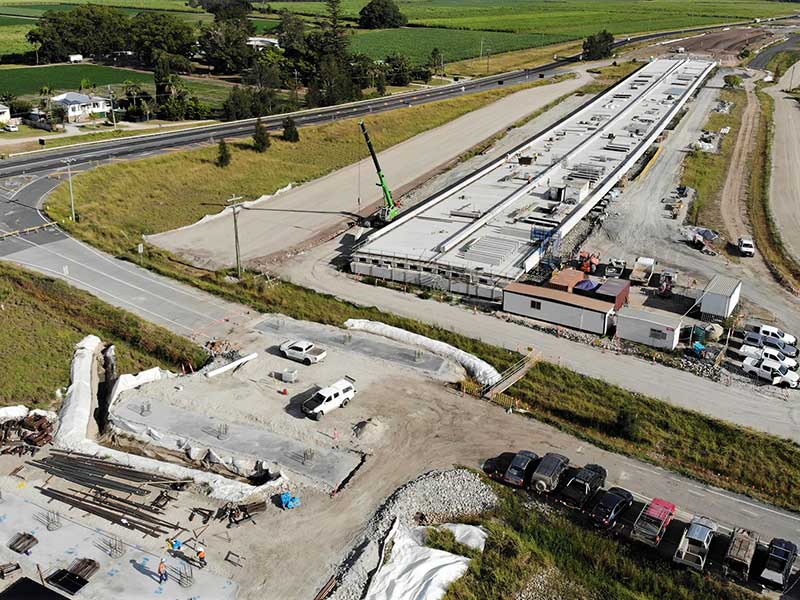

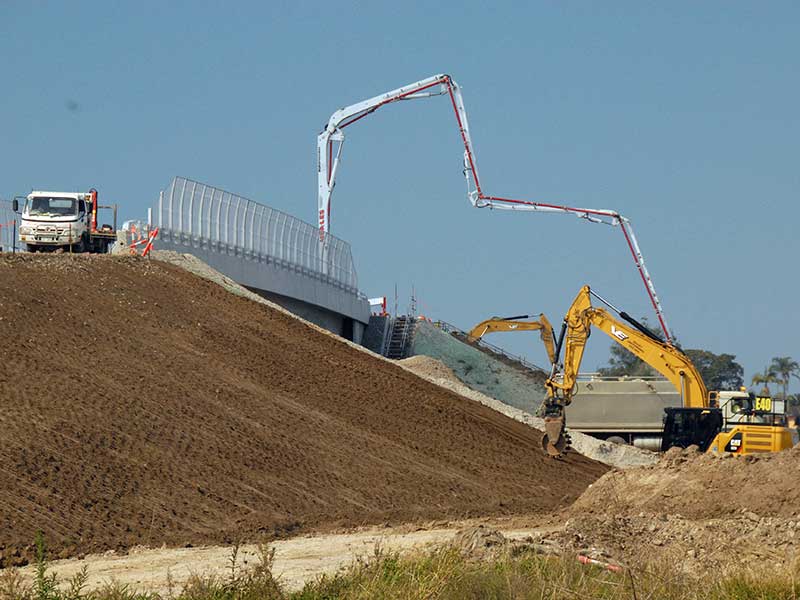

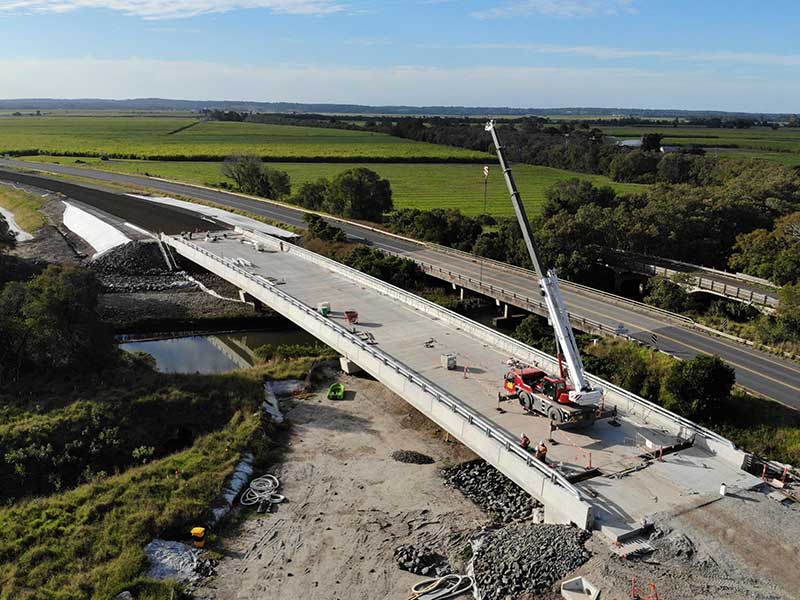

Largest precast elements installed were 60t Super T girders requiring a 750t mobile crane to carry out the installation. Night works and temporary highway closures were required to install girders over live traffic. All decks were cast in-situ concrete and finished with a mechanical vibrating truss screed. A total of 1216 precast parapets were installed on the bridges and connected to the deck via an in-situ concrete ‘stitch’ pours. JF Hull also completed the bridge approach works which included general fill and gravel pavement layers from underside of abutment sill beam to underside of foamed bitumen and AC layer.

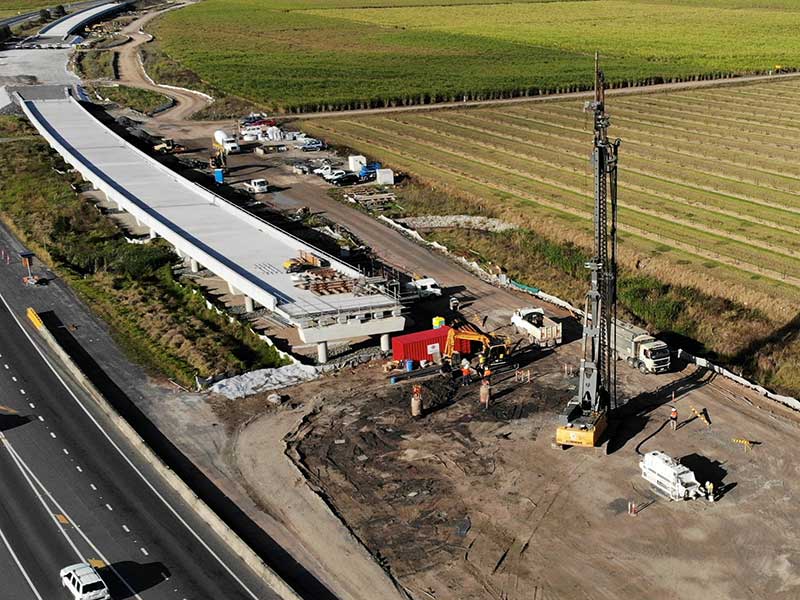

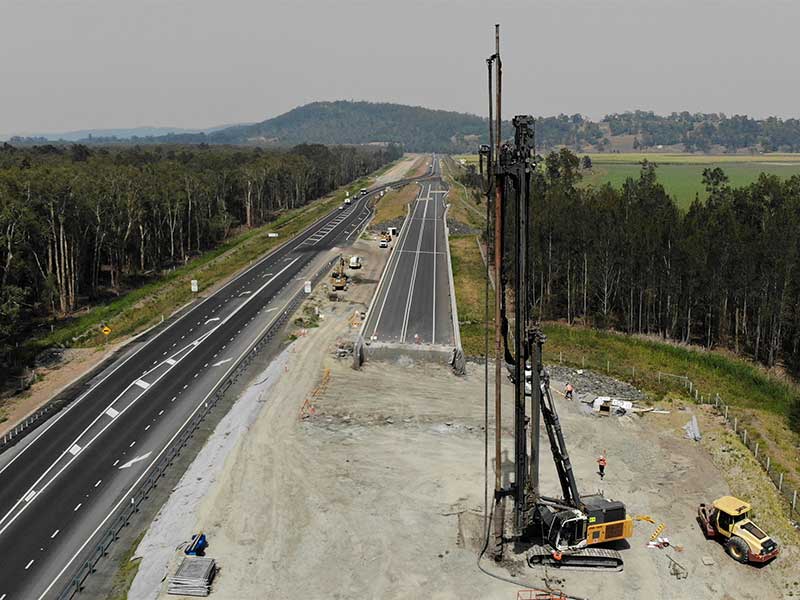

Finally, due to settlement issues, JF Hull managed the installation of approx. 13k of CFA and CIC ground improvement piles.
